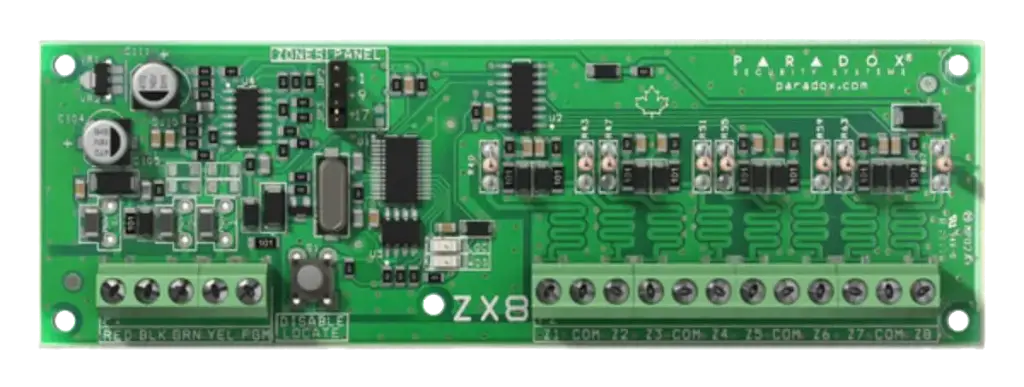

ZX8SP-P2C
The Paradox ZX8SP-P2C is an 8-zone expansion module designed for EVO and Digiplex alarm systems. It allows installers to add wired zones with extra stability and enhanced isolation, making it ideal for large-scale installations requiring reliable expansion.
🔑 Key Features
Provides 8 additional wired zones for system expansion
Isolated zone design for improved reliability
LED indicators for zone status and fault diagnostics
Tamper protection for increased security
Compatible with Paradox EVO and Digiplex panels
Compact, installer-friendly design
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | ZX8SP-P2C |
| Zones Supported | 8 wired zones |
| Zone Type | Isolated for reliability |
| Compatibility | Paradox EVO & Digiplex control panels |
| LED Indicators | Zone and fault status |
| Power Supply | 9–16 V DC |
| Current Consumption | ~45 mA typical |
| Tamper Protection | Built-in switch |
| Operating Temp. | 0°C to 50°C |
| Dimensions | Approx. 140 × 105 × 25 mm |
📦 Package Includes
1 × Paradox ZX8SP-P2C 8-Zone Expansion Module
1 × Mounting hardware kit
1 × Installation guide
🎯 Best Used For
Large commercial facilities requiring additional zone capacity
Critical security sites needing reliable, isolated inputs
Residential estates with extensive wired detection points
Installers prioritising stability and fault protection
Specifications
| Brand | Paradox |
