ZX8

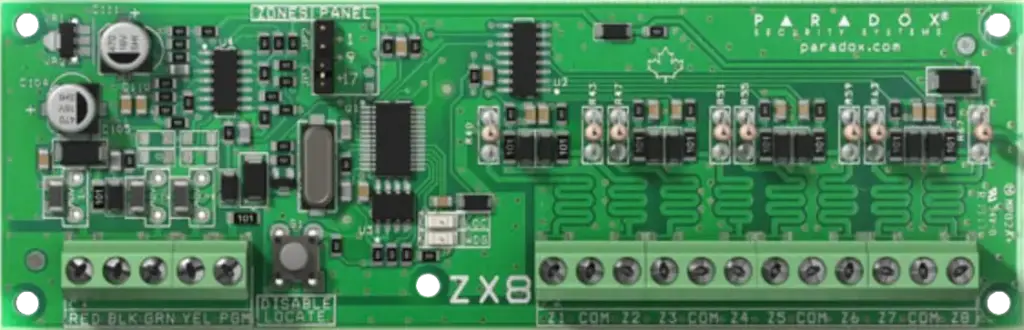

The Paradox ZX8-P2C is a wired expansion module that adds up to 8 additional hardwired zones to compatible Paradox alarm panels. Designed for seamless integration, it provides reliable scalability for both residential and commercial alarm installations.
🔑 Key Features
Expands your system with 8 additional wired zones
LED indicators for zone status and fault monitoring
Tamper protection for added system security
Compatible with Paradox EVO and Digiplex panels
Compact design for professional installation flexibility
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | ZX8-P2C |
| Zones Supported | 8 wired zones |
| Compatibility | Paradox EVO & Digiplex systems |
| LED Indicators | Zone and fault diagnostics |
| Power Supply | 9–16 V DC |
| Current Consumption | ~40 mA typical |
| Tamper Protection | Built-in switch |
| Operating Temp. | 0°C to 50°C |
| Dimensions | Approx. 140 × 105 × 25 mm |
📦 Package Includes
1 × Paradox ZX8-P2C 8-Zone Expansion Module
1 × Mounting hardware kit
1 × Installation guide
🎯 Best Used For
Residential systems requiring a moderate number of wired detectors
Commercial sites needing mid-size zone expansion
Upgrading EVO or Digiplex panels for scalability
Installers balancing cost and expansion needs
