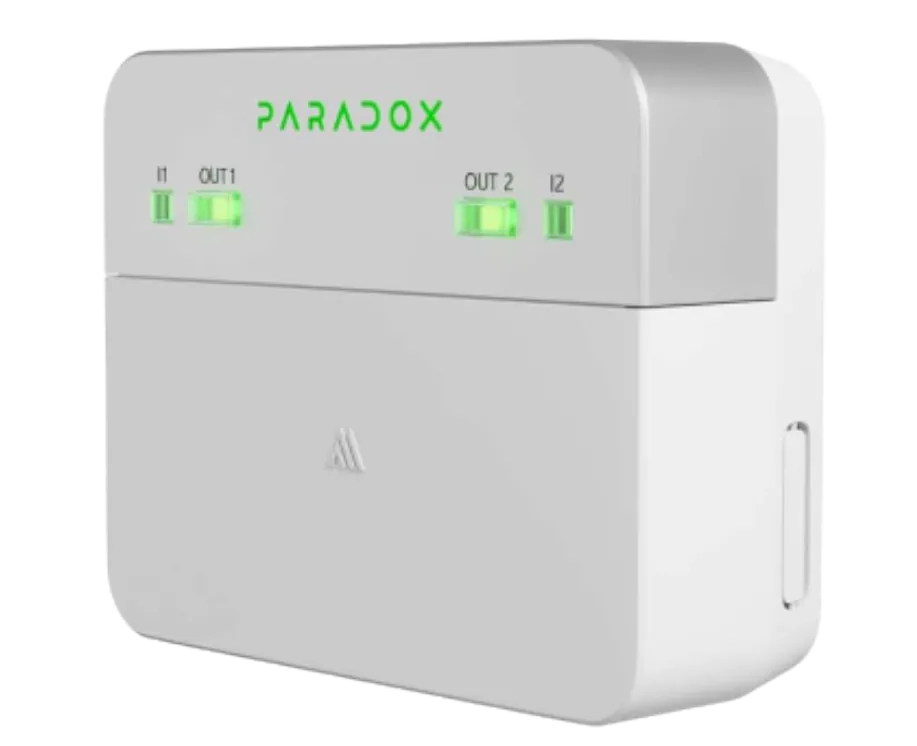

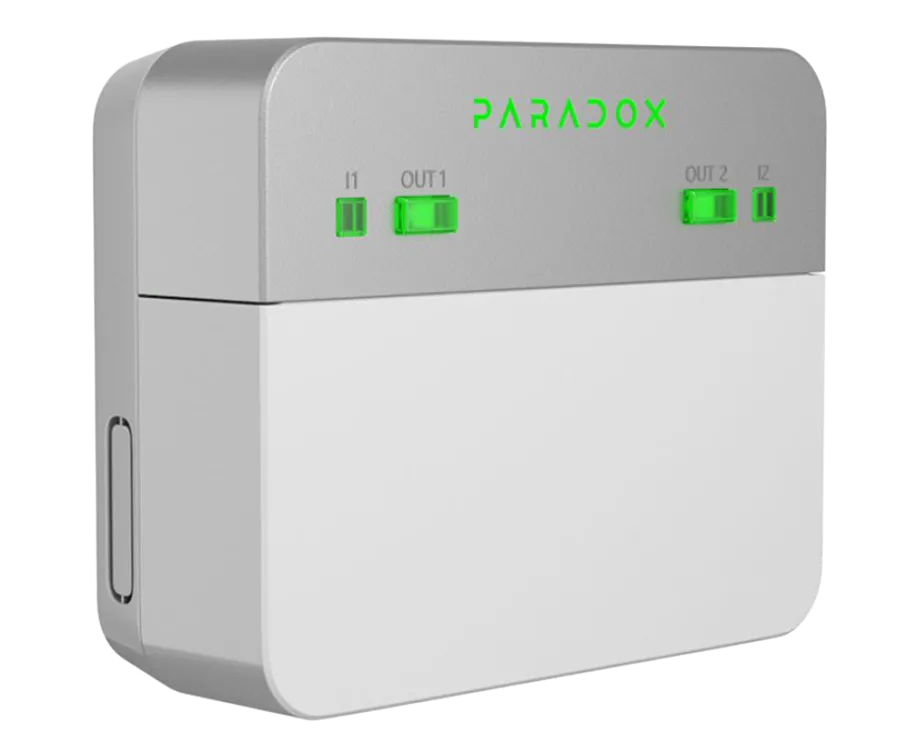

The ZP2M is a compact wireless and bus-compatible expander designed for the Paradox M25 security ecosystem. It adds two monitored zone inputs and two relay outputs to an existing M25 installation — without running new cable back to the panel. Whether you need to cover an additional door or window, control a garage door, gate, or external device, the ZP2M makes it possible with minimal installation effort.
With the flexibility to connect wirelessly or via bus, it suits a wide range of installation scenarios — from retrofits where cabling isn't practical, to structured installations where bus connectivity is already in place.
🔑 Key Features
- Dual Zone Inputs – Adds two fully monitored alarm zones to your M25 system
- Dual Relay Outputs – Two programmable relay outputs for triggering external devices
- Garage Door Ready – Pre-configured as a controller for up to two garage doors
- Wireless or Bus Connection – Flexible connectivity to suit new builds and retrofits
- Onboard Battery – Rechargeable 3.7V lithium-ion battery for continued operation during power interruptions
- External Power Support – Operates from a standard 12V/1A power supply
- Compact Form Factor – Small footprint for discreet, space-efficient mounting
⚙️ Technical Specifications

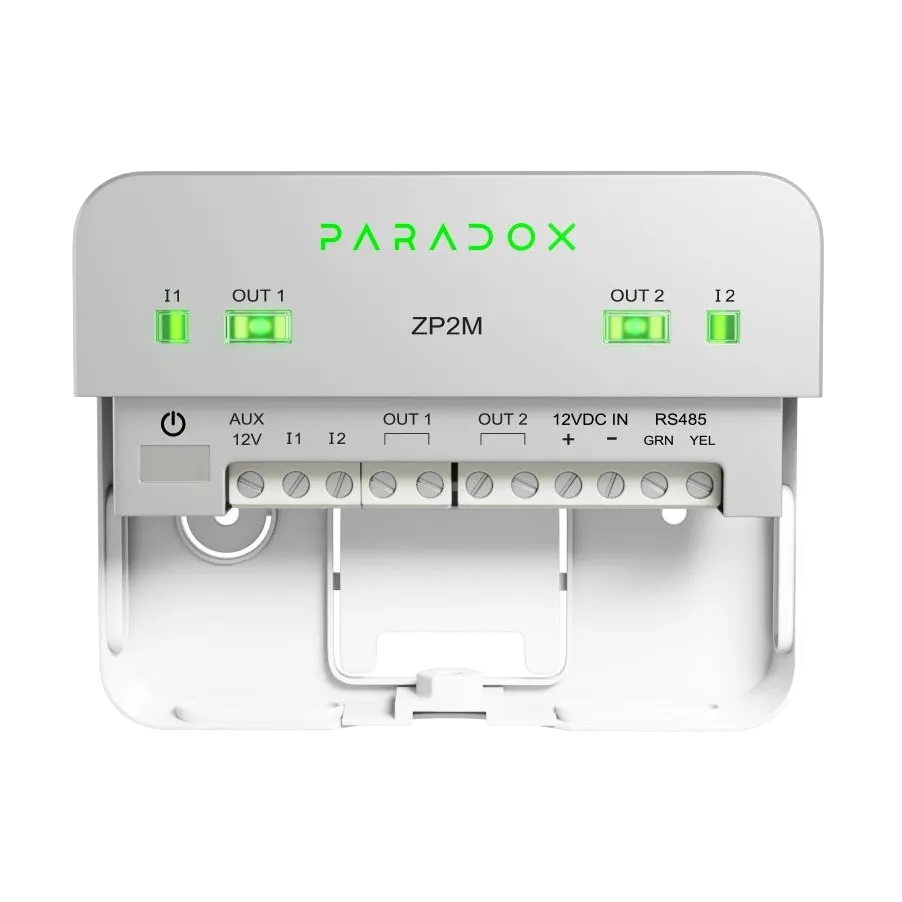

- Zone Inputs: 2
- Relay Outputs: 2
- Wireless Frequency: 868MHz
- Battery: 3.7V, 1000mAh rechargeable lithium-ion
- External Power: 12V/1A (required)
- Dimensions: 8.7 x 6.9 x 3CM
- Compatible System: Paradox M25
🏢 Best Used For
- Garage Doors & Gates – Control up to two automated entry points directly from the M25 system
- Additional Zones – Extend coverage to areas beyond the panel's onboard zone capacity
- Outbuildings & Sheds – Add monitoring to detached structures without running long cable runs
- Output Automation – Trigger lights, sirens, or other external devices via programmable relay outputs
- Retrofit Installations – Wireless connection avoids the need to disturb existing fitout
