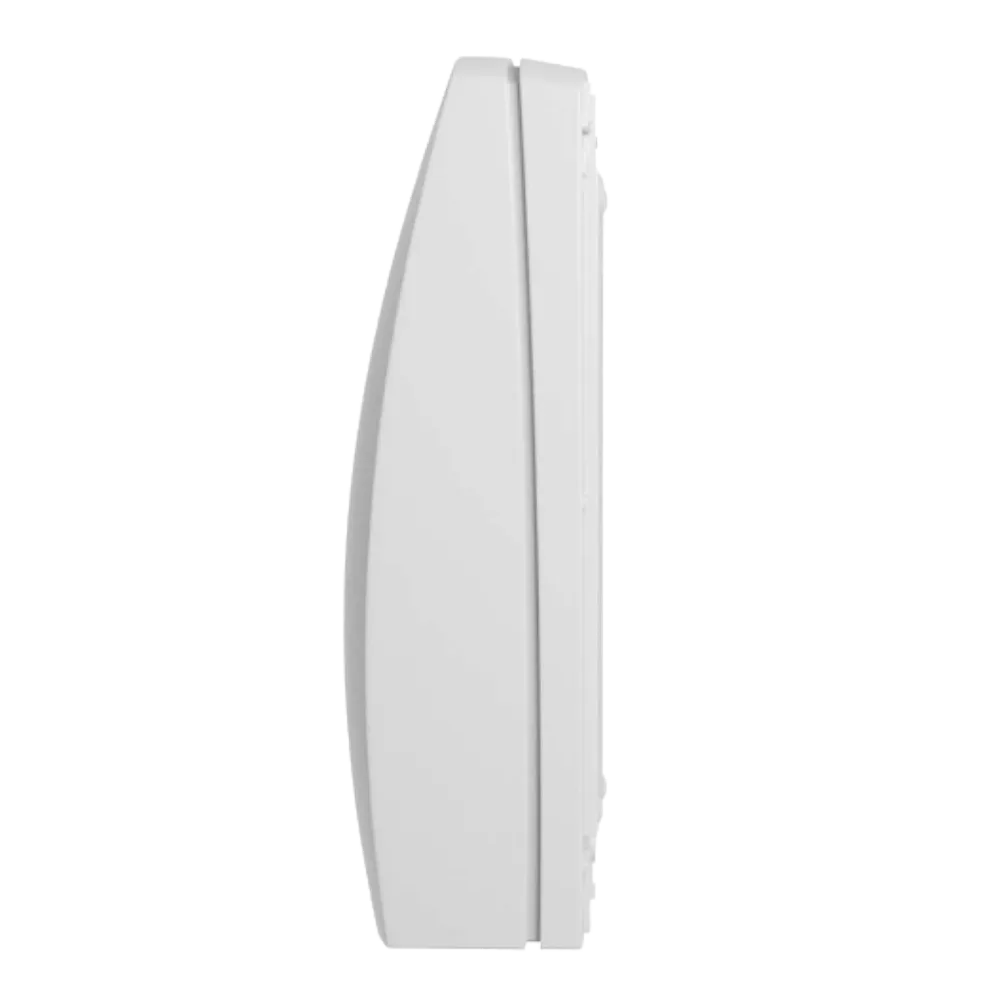

The PGMZ1M is a compact single-output wireless expander designed for the Paradox M25 security ecosystem. It adds one programmable relay output and one monitored zone input to an existing M25 installation — all in a slim, discreet housing suitable for both indoor and outdoor use. Whether you need to trigger a siren, control a lock, activate a light, or monitor an additional zone, the PGMZ1M delivers that capability wirelessly without additional wiring back to the panel.
Built-in temperature sensing adds an extra layer of environmental awareness, and with firmware upgradable over the air via the BlueEye app, the device stays current without requiring a technician on-site.
🔑 Key Features
- Programmable Relay Output – One 24V/1A relay output for triggering sirens, locks, lights, or other external devices
- Zone Input – One monitored input for connecting a wired sensor or detector
- Temperature Sensor – Built-in temperature monitoring with app-based alerts and PGM activation
- Wireless Two-Way Communication – GFSK with frequency and encryption hopping for secure, reliable connectivity
- Indoor/Outdoor Rated – Suitable for installation inside or outside the premises
- App Status Visibility – Output status, tamper, power, temperature, and TX/RX values all visible in BlueEye
- OTA Firmware Upgrades – Update remotely via the BlueEye app, no on-site visit required
- Auto Learn – Quick pairing to the M25 console during setup
- Certified – CE and FCC 15.247 compliant
⚙️ Technical Specifications
- Outputs: 1 x relay, 24V/1A max
- Zone Inputs: 1
- Power Input: AC/DC 5–16V, 300mA minimum
- Wireless Frequency: 868MHz (region dependent)
- Wireless Type: GFSK two-way, frequency and encryption hopping
- Transmission Time: Less than 20MS
- Supervision Time: 10 minutes (default), 3 or 20 minutes selectable
- Operating Temperature: -30C to 50C
- Dimensions: 4.6CM W x 12.45CM H x 3.3CM D
- Weight: 77G
- Colour: White
- Compatible System: Paradox M25
🏢 Best Used For
- Siren & Strobe Triggering – Activate an external alarm device from a wireless location
- Access Control – Release electric strikes or magnetic locks on doors and gates
- Additional Zone Monitoring – Connect a wired sensor where running cable to the panel isn't practical
- Lighting Automation – Trigger lights based on alarm events, schedules, or temperature readings
- Outbuildings & Remote Areas – Extend output capability to sheds, garages, or entry points without new cabling
- Temperature-Based Automation – Use the built-in sensor to trigger outputs based on heat or cold thresholds
