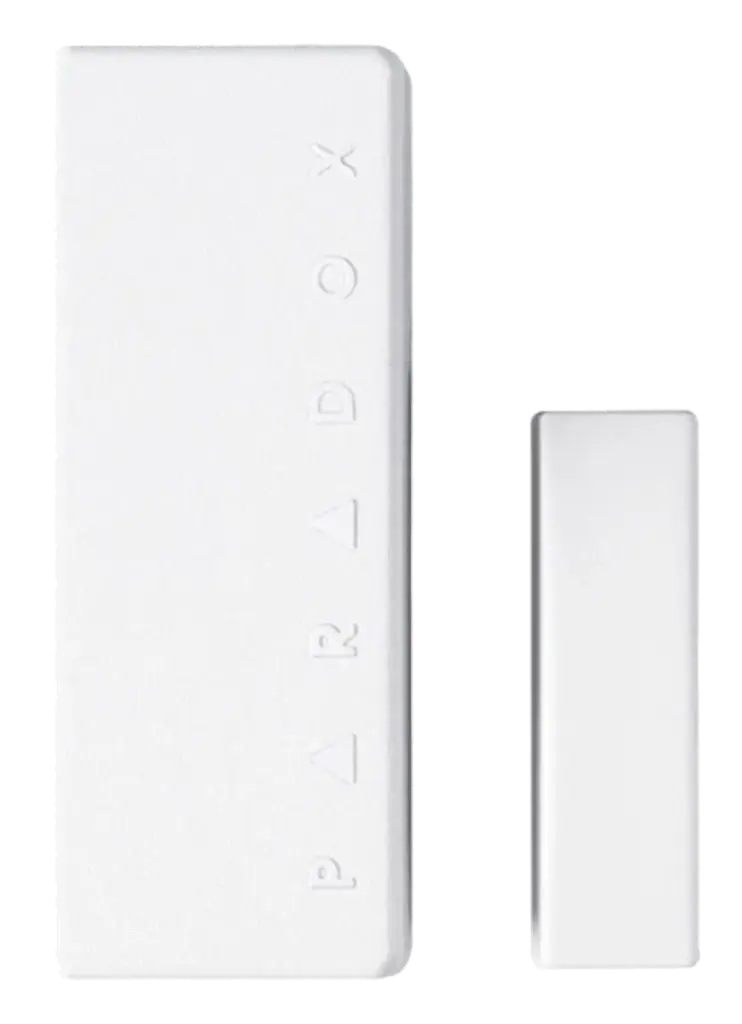

ZC1
A compact, addressable door/window contact module that connects directly to the EVO BUS, enabling reliable intrusion detection without occupying relay outputs.
🔑 Key Features
Provides one addressable detection zone for doors or windows
EVO BUS connectivity only — does not use relay outputs
Integrated reed switch for magnetic contact detection
Tamper switch to detect unauthorized removal or interference
LED indicators for power, open zone, and fault diagnostics
🛠Technical Specifications
| Feature | Specification |
|---|---|
| Model | ZC1-P2C |
| Zone | 1 addressable zone |
| Connection | EVO BUS (no relay output) |
| Reed Switch Type | Form A (SPST) magnetic contact |
| Tamper Protection | On-board tamper switch |
| Indicators | LEDs: power, open zone, locate, bus fault |
| Power Requirements | 9–16 V DC; draws ~14.2 mA |
| Operating Temp. | 0°C to 50°C |
| Dimensions | 73.7 × 20.3 × 30.5 mm |
📦 Package Includes
1 × Paradox ZC1-P2C Door Contact Module
1 × Mounting kit (bracket & screws)
1 × Installation guide
🎯 Best Used For
Adding zones to EVO series alarm systems via BUS connection
Discreet door/window monitoring without extra relays
Compact installs where space is limited
Professional security projects needing diagnostic LEDs
Specifications
| Brand | Paradox |
