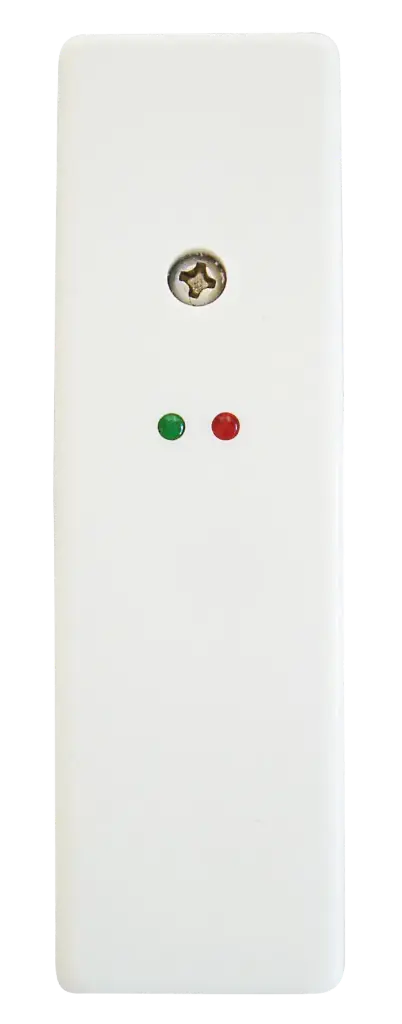

WSD01

A compact shock/vibration detector using a piezoelectric transducer to sense impact or force. Designed for windows, doors, and other vulnerable surfaces where sudden vibration indicates tampering.

🔑 Key Features

• Detects vibration/shock via piezoelectric element

• Low profile design for discreet installation

• Adjustable sensitivity for different environments

• Provides Normally Closed (N/C) dry contact signal when tripped

• Gold‑plated contacts for improved reliability

• Can operate in either latching or momentary mode

🛠 Technical Specifications

• Model: WSD01

• Sensing Mechanism: Piezoelectric transducer

• Output: Normally Closed (N/C) dry contact

• Modes: Latching or non‑latching selectable

• Sensitivity Adjustment: Internal sensitivity level setting

• Housing: Metal or shielded casing to reduce interference

• Orientation: Can be mounted horizontally or vertically

• Power Supply: Low voltage (typical ranges e.g. 9–16 V DC)

• Indicators: LED (for alarm status)

• Operating Environment: Indoor use on glass, doors, partitions

🎯 Best Used For

• Protecting large glass panes where breakage causes vibration

• Supplementing magnetic reed contacts with shock detection

• High-value display windows, storefronts, or glazed walls

• Zones where subtle vibration detection is critical

• When a discrete sensor is needed with minimal visual impact
