WP16

A modern, slimline siren and strobe combination unit offering selectable siren tones, built-in end-of-line resistors (EOLR), and a compact design suitable for residential or commercial alarm systems.

🔑 Key Features

• Selectable siren tone: Warble or Hi/Lo

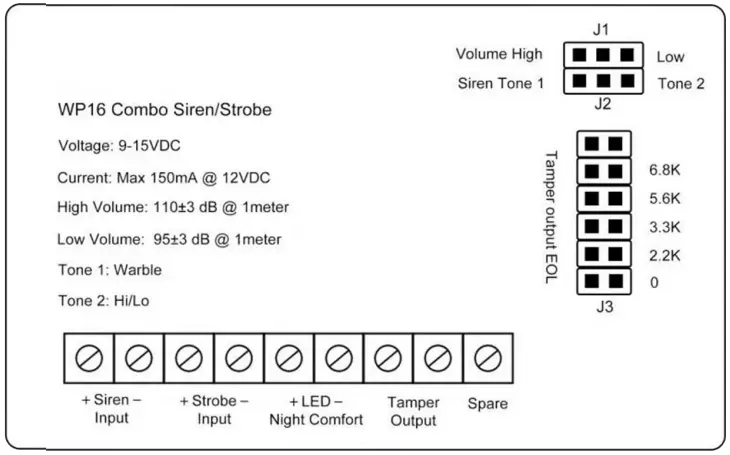

• Built-in EOL resistors (2.2 kΩ, 3.3 kΩ, 5.6 kΩ, 6.8 kΩ) for simple panel compatibility

• High-output 110 dB siren for clear and powerful alerts

• Independent siren and strobe operation

• Flat, low-profile housing designed for neat installations

• UV-stabilised and weather-resistant enclosure for indoor or sheltered outdoor use

🛠 Technical Specifications

• Model: WP16

• Sound Output: Approx. 110 dB @ 1 m

• Operating Voltage: 9 – 15 V DC

• Current Consumption: Siren ≈ 150 mA / Strobe ≈ 50 mA

• Selectable Tones: Warble / Hi-Lo

• EOLR Options: 2.2 kΩ, 3.3 kΩ, 5.6 kΩ, 6.8 kΩ

• Dimensions: 200 mm (L) × 110 mm (W) × 40 mm (H)

• Housing: UV-treated plastic, weather-resistant, tamper-protected

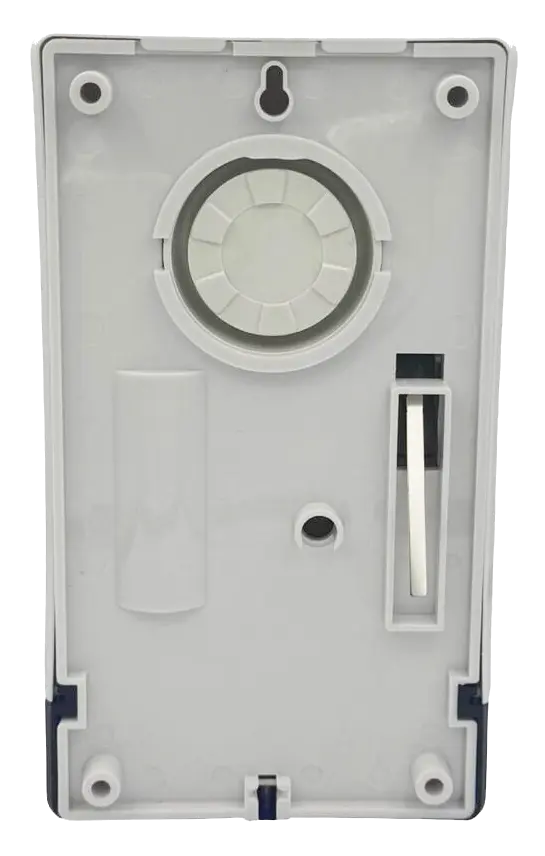

• Mounting: Surface mount, flat slimline design

• Environment: Indoor or sheltered outdoor applications

🎯 Best Used For

The WP16 Slimline Combo Siren & Strobe is best used in professional security systems that require a compact and visually clean alerting device. It is ideal for homes, offices, and retail environments needing a high-output siren and strobe combination with built-in resistors for easier wiring and system integration.
