WP10

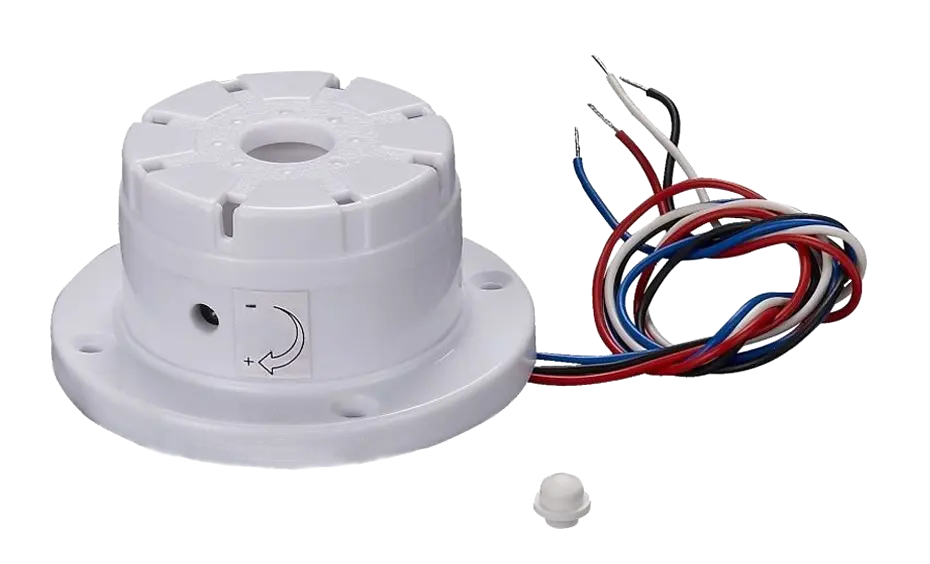

A compact top-hat style combination sounder and chime with adjustable volume, designed for ceiling or wall mounting. The WP10 provides both loud alarm tones and softer chime notifications, making it perfect for flexible security and alerting applications.

🔑 Key Features

• Dual-function unit combining piezo sounder and chime in one device

• Adjustable volume control for both high and low noise environments

• Loud and clear sound output up to approximately 110 dB

• Low power consumption suitable for 12 V DC systems

• “Top Hat” design allows for easy ceiling or surface mounting

• Durable housing with neat appearance for professional installations

🛠 Technical Specifications

• Model: WP10

• Operating Voltage: 12 V DC nominal

• Sound Output: Up to 110 dB @ 1 m (Piezo)

• Chime Volume: Adjustable (approx. 75 – 95 dB)

• Current Draw: ~90 mA typical

• Mounting Style: Top Hat (ceiling or wall)

• Wiring: 4-wire configuration for separate chime and power lines

• Construction: Robust ABS housing

• Application: Indoor use

🎯 Best Used For

The WP10 Combo Top Hat Piezo/Chime is best used in access control or alarm systems that require both attention-grabbing alerts and subtle chime notifications. Ideal for retail, office, and commercial environments where an adjustable, compact, and professional-looking sounder is required.
