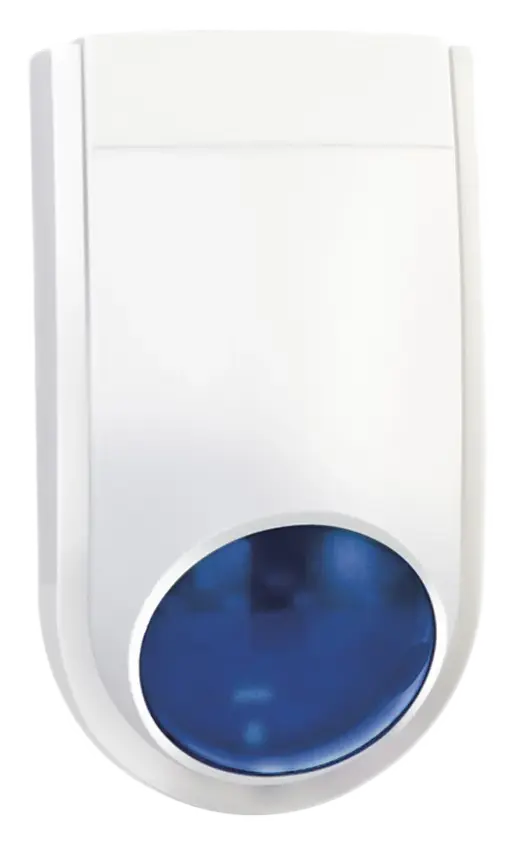

WP06

A compact, high-performance siren and strobe combination unit featuring a reflective mirror design and built-in end-of-line resistors (EOLR). The WP06 delivers powerful audible and visual alerts in a weather-protected housing, ideal for reliable alarm signaling in both residential and commercial applications.

🔑 Key Features

• Combined siren and strobe for visual and audible alarm indication

• Reflecting mirror design enhances strobe brightness and visibility

• Selectable siren tones (Warble or Hi/Lo)

• Built-in end-of-line resistors for direct alarm panel integration

• Independent siren and strobe operation for flexible setup

• UV-treated, weather-resistant enclosure suitable for outdoor use

• Front and rear tamper protection for enhanced system security

🛠 Technical Specifications

• Model: WP06

• Operating Voltage: 9 – 15 V DC nominal

• Sound Output: Up to 110 dB @ 1 m

• Siren Current Draw: Approx. 150 mA

• Strobe Current Draw: Approx. 50 mA

• Selectable EOLR Values: 2.2 kΩ, 3.3 kΩ, 5.6 kΩ, 6.8 kΩ

• Dimensions: 200 mm (H) × 110 mm (W) × 70 mm (D)

• Housing: UV-stabilised ABS plastic with reflective strobe mirror

• Mounting: Surface mount

• Protection: Weather-resistant with front and rear tamper detection

🎯 Best Used For

The WP06 Combo Siren & Strobe is best used in alarm systems that require a durable and highly visible signaling device for external or perimeter zones. It’s ideal for residential, commercial, and industrial installations where reliability, visibility, and panel compatibility are essential.
