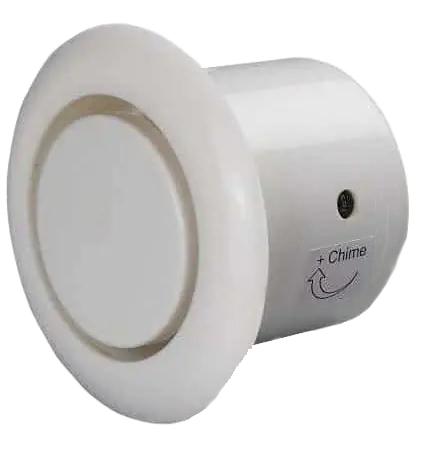

WP05VA

A sleek flush-mount piezo sounder designed for professional indoor alarm installations. Featuring an adjustable volume control and compact form, it offers a performance-versatile option for detecting and alerting in modern systems.

🔑 Key Features

• Built-in volume control enabling adjustable sound output for different zone requirements

• Flush-mount design ideal for ceiling or panel embedding, providing a low-profile installation

• Wide sound level range (approximately 78–105 dB at 1 m) to suit a variety of environments from subtle to high-alert settings

• Low-current draw (approx. 10–90 mA) to keep power usage efficient and system loading minimal

• 4-wire flying leads for straightforward wiring and integration with standard alarm control panels

🛠 Technical Specifications

• Model: WP05VA

• Operating Voltage: 12 V DC nominal

• Current Consumption: Approx. 10–90 mA, depending on volume setting

• Sound Pressure Level (SPL): Approx. 78 dB to 105 dB @ 1 m (volume-adjustable)

• Mounting Style: Flush‐mount, for ceiling or panel embedding

• Wiring: 4-wire flying leads for power and signal connections

• Application: Indoor alarm zones where discreet but effective audible indication is required

• Housing: Low-profile flush enclosure finished in white for aesthetic integration

🎯 Best Used For

The WP05VA is best used in indoor alarm systems where adjustable volume and discreet positioning are important—such as offices with variable noise levels, residential apartments requiring subtle alerting, or commercial interiors where a ceiling-mounted sounder is preferred over surface mounting.
