NV780MR

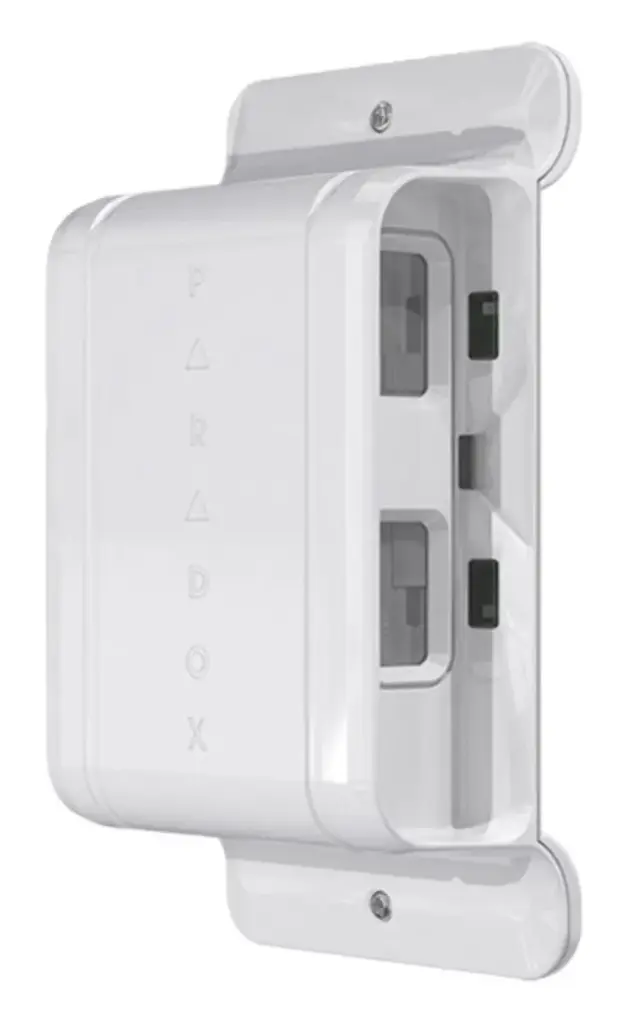

The Paradox NV780MR is a wireless outdoor motion detector featuring dual side-view detection, anti-masking, and pet immunity. Designed to provide narrow curtain detection on both sides of the unit, it offers reliable perimeter coverage for residential and commercial applications. With an adjustable detection range of up to 12 meters per side, this detector is ideal for monitoring walls, fences, and narrow outdoor zones.

🔑 Key Features

• Dual-Side Curtain Detection – Independent sensors on each side for targeted perimeter coverage

• Active IR Anti-Masking – Detects attempts to block or tamper with the sensors within 20 seconds

• Pet Immunity – Ignores animals up to 40KG when installed at the correct height

• Adjustable Detection Range – Configurable between 3M and 12M per side

• Wireless Communication – Operates on 433MHz and integrates with Paradox RTX3 or Magellan panels

• Zone Mode Options – Can report as a single zone or split into left and right zones

• Battery Operated – Powered by 3 x AA alkaline batteries with an expected life of up to 3 years

• Weather Resistant Housing – IP54 rated for dust and water spray protection

• Built-in Level Tool – Ensures correct positioning during installation

⚙️ Technical Specifications

• Model: NV780MR

• Detection Zones: Dual side-view, adjustable 3M–12M per side

• Coverage Pattern: Narrow beam, horizontal curtain

• Power Source: 3 x AA 1.5V alkaline batteries

• Battery Life: Approx. 3 years under typical conditions

• Frequency: 433MHz

• Tamper Protection: Yes (front cover and wall mount)

• Installation Height: 1.5M minimum

• Operating Temperature: -35°C to +50°C

• Dimensions: 210 x 110 x 70MM

• Weight: Approx. 450g (with batteries)

• Certifications: EN 50131-2-2 Grade 2, Class IVa

• Weather Cover: 780MRC (Sold Separately)

🏢 Best Used For

• Home Perimeter Security – Monitoring fence lines, side paths, and building perimeters

• Commercial Sites – Ideal for office complexes, warehouses, and external wall protection

• Pet-Friendly Installations – Effective in environments where large pets are present

• Tamper-Prone Areas – Suited for locations where vandalism or sensor blocking is a concern
