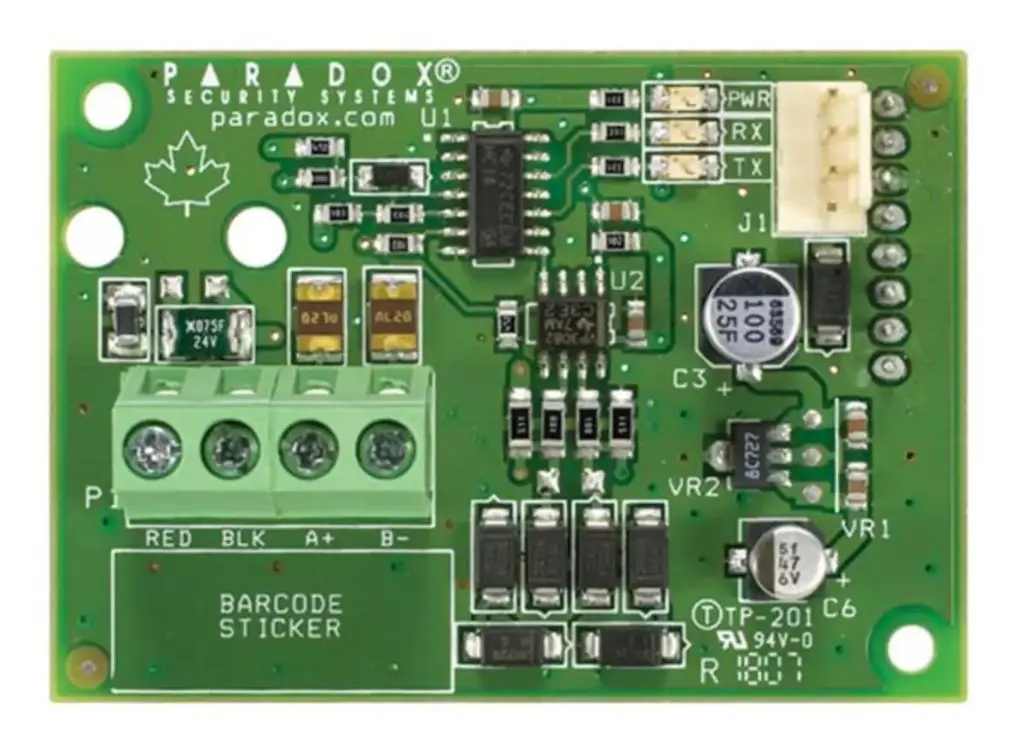

CVT485

A compact module that plugs directly into Paradox control panels to convert RS‑232/serial output into RS‑485, extending communicator placement up to 300 m away—ideal for enhancing GSM signal or hiding modules remotely.

🔑 Key Features

• Converts panel serial output to RS‑485 for long-distance communication

• Designed specifically for use with PCS265V7 and PCS265V8 communicator modules in GSM mode

• Easy plug‑in installation, mounts directly on panel port

🛠 Technical Specifications

• Model: CVT485‑P2C (sometimes labeled CVT485 or PAR‑75)

• Interface Conversion: RS‑232 (serial) to RS‑485

• Maximum RS‑485 Cable Run: Up to 300 m (1,000 ft)

• Includes: 1 m serial pigtail cable to panel

• Power Wiring Limits: RS‑485 pairs up to 300 m; power pair length varies by cable gauge (e.g. AWG18 = 50 m)

• Mounting: Direct plug‑in to panel’s serial/EBUS port

🎯 Best Used For

• Remote communicator placement: Allows PCS265V7 and PCS265V8 to be installed far from the control panel for better GSM reception

• Concealed installations: Ideal for hiding communicator modules where visibility or accessibility is limited

• Multi‑building or outdoor setups: Enables panel-to-communicator links across long cable runs

• GSM backup configurations: Essential component for reliable dual-path alarm reporting
